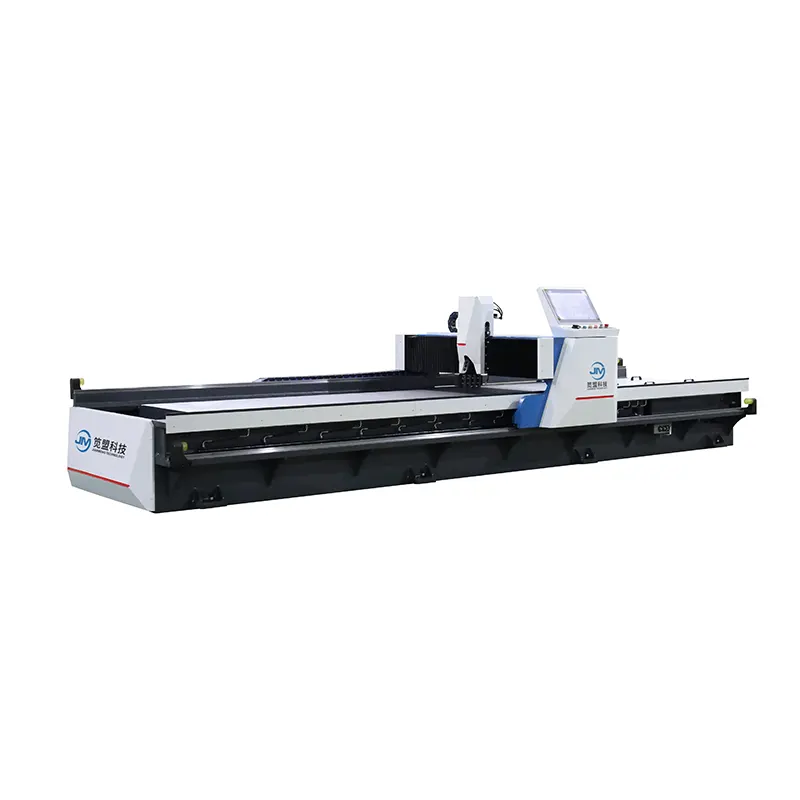

CNC Horizontal High Speed V Grooving Machine For Metal Plates

JM as the Chinese famous V grooving machine manufacturer, its CNC horizontal high speed V grooving machine for metal plates is easy to master and operate and and can meet requirements for processing all metal plates.

Send Inquiry

Product Description

The professional V grooving machine manufacturer JM in China provides the stable CNC horizontal high speed V grooving machine for metal plates, this machine support USB data import and WiFi remote control.

Product Features:

1. The CNC horizontal high speed V grooving machine for metal plates equips open plane, which is easy to use suction cup for loading and unloading.

2. The CNC horizontal high speed V grooving machine for metal plates have intelligent system, easy to master and easy to operate.

3. The gantry grooves metal on the double guide rail, which runs smoothly with table working state.

4. The working table of horizontal high speed V grooving machine for metal plates is made of low alloy, and the accuracy of the table is within 0.03mm.

5. Four axis control system, with industrial touch screen, monitors real-time the horizontal high speed V grooving machine for metal plates status.

Technical data of CNC Horizontal High Speed V Grooving Machine For Metal Plates

Processability	Processing Length	2500mm	3200 mm	4000 mm	6000mm
	Processing Width	1250/1500mm	1250/1500mm	1250/1500mm	1250/150mm
	Processing Thickness	0.4-5.0mm	0.4-5.0mm	0.4-50mm	0.4-50mm
	Minimum edge distance	8mm	8mm	8mm	8mm
Processing speed	Gantry(X-axis)	0-120 m/min	0-120m/min	0-120 m/min	0-120m/min
	Tool holder(YI-axis)movement	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Movable clamping (Y2 axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Tool holder (Z-axis)up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10m/min
Processing accuracy	Repeated positioning ermror of positioning axis	0.015mm	0.015mm	0.015mm	0.015mm
Processing accuracy	Minimum resolution of positioning axis	0.001mm	0.001mm	0.001mm	0001mm
Table	Table flatness	±0.03mm	±0.03mm	±0.03mm	±0.03 mm
Externa dimensions	Length	4400mm	5100 mm	5900 mm	7900mm
	Processing Width	2000/2250mm	2000/2250mm	2000/2250mm	2000/2250mm
	Height	1550mm	1550 mm	1550 mm	1550mm

Components of CNC Horizontal High Speed V Grooving Machine For Metal Plates

- CNC system with large touch screen: Taiwan Superior

- Servo motor: Taiwan Superior

- Cylinder seal element: Japan Valqua

- Planetary reducer: Taiwan Liming

- Hydraulic control system: Janpan Yuken

- AC Contactor: France Schneider

- Button: France Schneider

- Thermal relay: France Schneider

- Proximity switch: Japan Omron

- Micro relay: France Schneider

- Circuit breaker: France Schneider

- Alloy knife: Korea Korloy

- Machine tool cable: Germany Igus

- Heavy linear guide rail: Taiwan TBI

- Single/double air switch : France Schneider

Applications Industry:

- Architectural decoration

- Door industry

- Elevator equipment

- Stainless steel processing

- Kitchenware

- Advertising signage

- Hardware products

- Bathroom

FAQ

Q: Can you send your staff to install the CNC horizontal high speed V grooving machine of metal plates for us?

A: Yes. We can arrange our engineers to offer on-site service, if you need it.

Q: Do you have detailed and professional installation manual?

A: Yes. We have professional instruction manual and video tutorial.

Q: Can you can design the CNC horizontal high speed V grooving machine for metal plates according to our size?

A: Yes. We can design equipment according to your requirements.
