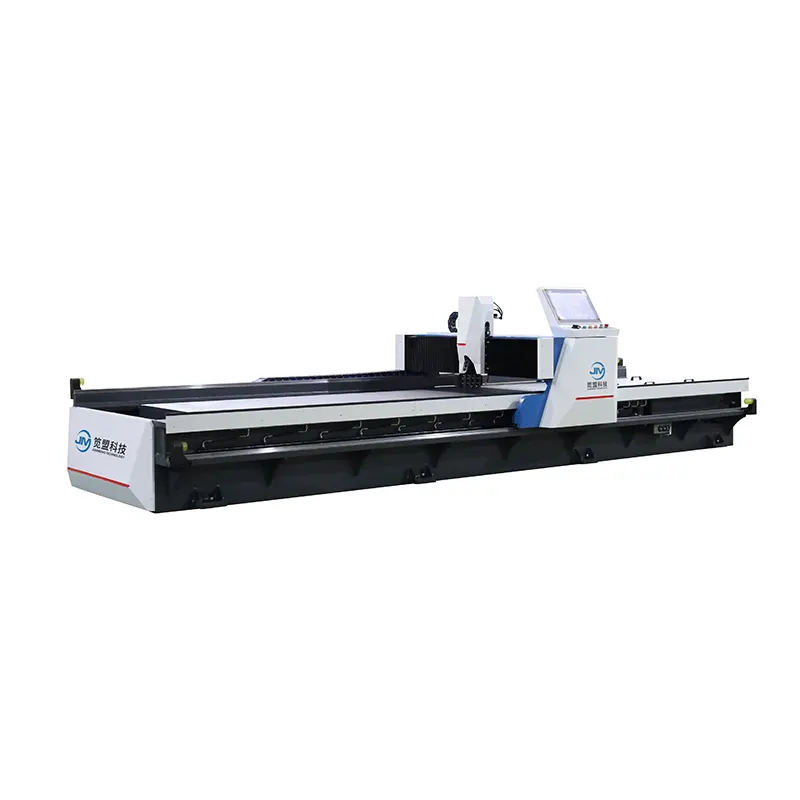

Horizontal Double Drive V Groove Cutting Machine

The Horizontal double drive V groove cutting machine from the manufacturer JM in China is durable, this machine also supports fixed-point V-shaped cutting, it can help customer to do dissimilar work.

Send Inquiry

Product Description

The V grooving machine manufacturer JM in China provides wide range of V grooving machines, the horizontal double drive V groove cutting machine has high economic benefits at medium to low utilization rates.

Product Features:

1. The tool holder of horizontal double drive V groove cutting machine is equipped with self-lubricating system.

2. The horizontal double drive V groove cutting machine supports fixed-point grooving, processing of dissimilar work.

3. Double rack and pinion drive with servo driver, accurate positioning.

4. Five axis control system, with industrial touch screen, monitors real-time horizontal double drive V groove cutting machine status.

5. The crossbeam of horizontal double drive V groove cutting machine is driven by double servo motors, equipped with double high-power planetary reducer, running smoothly.

Technical data of Horizontal Double Drive V Groove Cutting Machine

Processability	Processing Length	2500mm	3200 mm	4000 mm	6000mm
	Processing Width	1250/1500mm	1250/1500mm	1250/1500mm	1250/150mm
	Processing Thickness	0.4-5.0mm	0.4-5.0mm	0.4-50mm	0.4-50mm
	Minimum edge distance	8mm	8mm	8mm	8mm
Processing speed	Gantry(X-axis)	0-120 m/min	0-120m/min	0-120 m/min	0-120m/min
	Tool holder(YI-axis)movement	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Movable clamping (Y2 axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Tool holder (Z-axis)up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10m/min
Processing accuracy	Repeated positioning ermror of positioning axis	0.015mm	0.015mm	0.015mm	0.015mm
Processing accuracy	Minimum resolution of positioning axis	0.001mm	0.001mm	0.001mm	0001mm
Table	Table flatness	±0.03mm	±0.03mm	±0.03mm	±0.03 mm
Externa dimensions	Length	4400mm	5100 mm	5900 mm	7900mm
	Processing Width	2000/2250mm	2000/2250mm	2000/2250mm	2000/2250mm
	Height	1550mm	1550 mm	1550 mm	1550mm

Components of Horizontal Double Drive V Groove Cutting Machine

- CNC system with large touch screen: Taiwan Superior

- AC Contactor: France Schneider

- Servo motor: Taiwan Superior

- Alloy knife: Korea Korloy

- Single/double air switch : France Schneider

- Circuit breaker: France Schneider

- Proximity switch: Japan Omron

- Button: France Schneider

- Cylinder seal element: Japan Valqua

- Thermal relay: France Schneider

- Micro relay: France Schneider

- Heavy linear guide rail: Taiwan TBI

- Planetary reducer: Taiwan Liming

- Machine tool cable: Germany Igus

Applications Industry:

We provide the excellent horizontal double drive V groove cutting machine for below industries:

- Elevator equipment

- Bathroom

- Advertising signage

- Architectural decoration

- Stainless steel processing

FAQ

Q: How long it takes you to provide the designing options for us?

A: For standard horizontal double drive V groove cutting machine, we can offer you designing options at any time. For non-standard customized machine, we need 3 working days.

Q: How many days you need to install the horizontal double drive V groove cutting machine?

A: Our horizontal double drive V groove cutting machine is delivered to customer as a whole. It will take 3 hours for the installation and commissioning, then the machine can be used normally.

Q: Do you provide free spare parts ?

A: We offer all accessories for free within the period of warranty.
