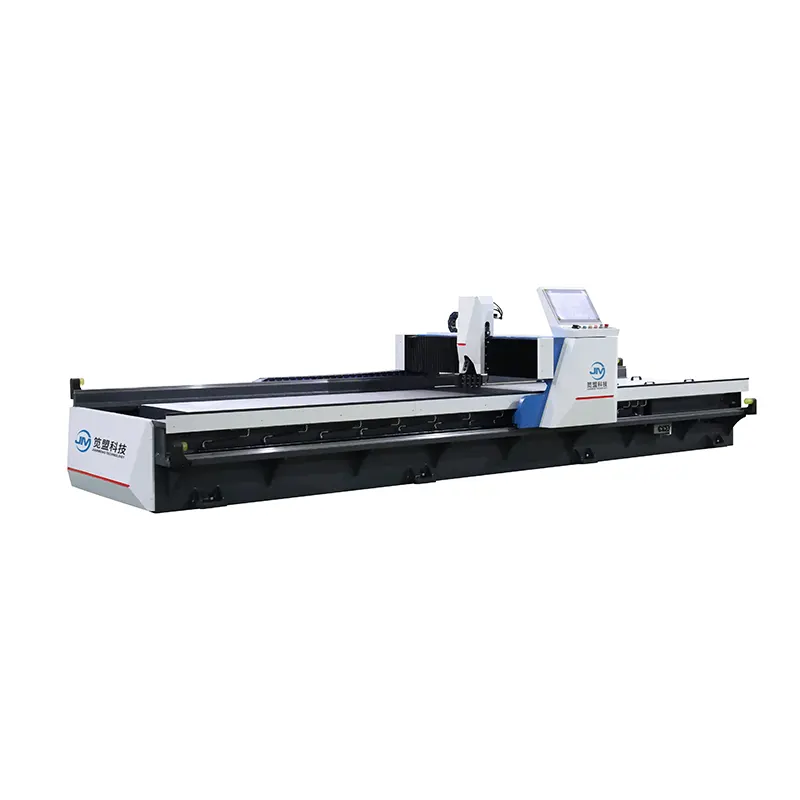

Horizontal High Speed V Cutting Machine For Stainless Steel Plates

The V grooving machine manufacturer JM in China provides the market with a wide range of Horizontal High Speed V Cutting Machine For Stainless Steel Plates, this machine is easy to master and operate.

Send Inquiry

Product Description

The Chinese V grooving machine manufacturer JM provides the Horizontal High Speed V Cutting Machine For Stainless Steel Plates with high economic benefits at medium to low utilization rates.

Product Features:

1. The working table of horizontal high speed V cutting machine for stainless steel plate is made of low alloy, and the accuracy of the table is within 0.03mm.

2. The gantry grooves metal on the double guide rail, which runs smoothly with table working state.

3. The whole horizontal high speed V cutting machine for stainless steel plate is stable after professional tempering heat treatment.

4. Four axis control system, with industrial touch screen, monitors real-time the horizontal high speed V cutting machine for stainless steel plate status.

5. The horizontal high speed V cutting machine for stainless steel plate equips open plane, which is easy to use suction cup for loading and unloading.

Technical data of Horizontal High Speed V Cutting Machine For Stainless Steel Plates

Processability	Processing Length	2500mm	3200 mm	4000 mm	6000mm
	Processing Width	1250/1500mm	1250/1500mm	1250/1500mm	1250/150mm
	Processing Thickness	0.4-5.0mm	0.4-5.0mm	0.4-50mm	0.4-50mm
	Minimum edge distance	8mm	8mm	8mm	8mm
Processing speed	Gantry(X-axis)	0-120 m/min	0-120m/min	0-120 m/min	0-120m/min
	Tool holder(YI-axis)movement	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Movable clamping (Y2 axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Tool holder (Z-axis)up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10m/min
Processing accuracy	Repeated positioning ermror of positioning axis	0.015mm	0.015mm	0.015mm	0.015mm
Processing accuracy	Minimum resolution of positioning axis	0.001mm	0.001mm	0.001mm	0001mm
Table	Table flatness	±0.03mm	±0.03mm	±0.03mm	±0.03 mm
Externa dimensions	Length	4400mm	5100 mm	5900 mm	7900mm
	Processing Width	2000/2250mm	2000/2250mm	2000/2250mm	2000/2250mm
	Height	1550mm	1550 mm	1550 mm	1550mm

Components of Horizontal High Speed V Cutting Machine For Stainless Steel Plates

- Planetary reducer: Taiwan Liming

- Servo motor: Taiwan Superior

- Machine tool cable: Germany Igus

- CNC system with large touch screen: Taiwan Superior

- Cylinder seal element: Japan Valqua

- Proximity switch: Japan Omron

- Single/double air switch : France Schneider

- Button: France Schneider

- Alloy knife: Korea Korloy

- Thermal relay: France Schneider

- Hydraulic control system: Janpan Yuken

- Micro relay: France Schneider

- AC Contactor: France Schneider

- Circuit breaker: France Schneider

- Heavy linear guide rail: Taiwan TBI

Applications Industry:

- Architectural decoration

- Elevator equipment

- Door industry

- Kitchenware

- Bathroom

- Anti skateboards

- Stainless steel processing

FAQ

Q: Can you send your staff to install the Horizontal High Speed V Cutting Machine For Stainless Steel Plates for us?

A: Yes. We can arrange our engineers to offer on-site service, if you need it.

Q: Do you have detailed and professional installation manual?

A: Yes. We have professional instruction manual and video tutorial.

Q: Can you can design the horizontal high speed V cutting machine for stainless steel plate according to our size?

A: Yes. We can design equipment according to your requirements.
