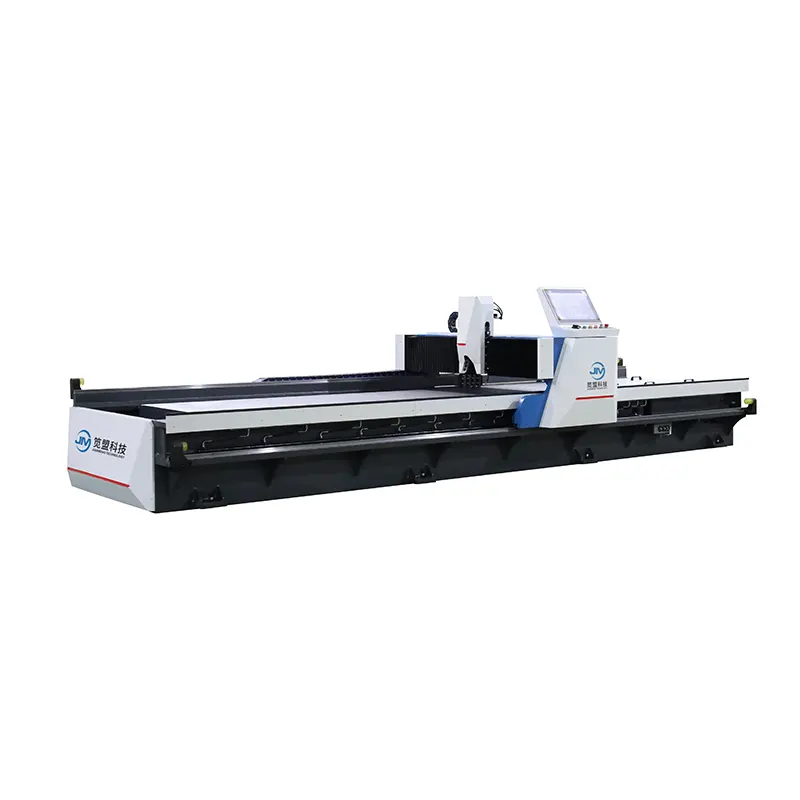

Horizontal High Speed V Groove Slotting Machine

JM is professional v slotting machine manufacturer in China, its horizontal high speed v groove slotting machine is a durable V grooving equipment, this machine have high cost-effectiveness and economic benefits at medium to low utilization rates.

Send Inquiry

Product Description

The horizontal high speed v groove slotting machine from manufacturer JM in China is designed with gantry-type structure, so this machine is efficient during loading and unloading.

Product Features:

1. The universal tool holder of horizontal high speed v groove slotting machine can meet the clamping requirements of various cutting tools.

2. Four axis control system, with industrial touch screen, monitors real-time the horizontal high speed v groove slotting machine status.

3. The horizontal high speed v groove slotting machine equips open plane, which is easy to use suction cup for loading and unloading.

4. The gantry grooves metal on the double guide rail, which runs smoothly with table working state.

5. The working table of horizontal high speed V groove slotting machine is made of low alloy, and the accuracy of the table is within 0.03mm

Technical data of Horizontal High Speed V Groove Slotting Machine

Processability	Processing Length	2500mm	3200 mm	4000 mm	6000mm
	Processing Width	1250/1500mm	1250/1500mm	1250/1500mm	1250/150mm
	Processing Thickness	0.4-5.0mm	0.4-5.0mm	0.4-50mm	0.4-50mm
	Minimum edge distance	8mm	8mm	8mm	8mm
Processing speed	Gantry(X-axis)	0-120 m/min	0-120m/min	0-120 m/min	0-120m/min
	Tool holder(YI-axis)movement	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Movable clamping (Y2 axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Tool holder (Z-axis)up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10m/min
Processing accuracy	Repeated positioning ermror of positioning axis	0.015mm	0.015mm	0.015mm	0.015mm
Processing accuracy	Minimum resolution of positioning axis	0.001mm	0.001mm	0.001mm	0001mm
Table	Table flatness	±0.03mm	±0.03mm	±0.03mm	±0.03 mm
Externa dimensions	Length	4400mm	5100 mm	5900 mm	7900mm
	Processing Width	2000/2250mm	2000/2250mm	2000/2250mm	2000/2250mm
	Height	1550mm	1550 mm	1550 mm	1550mm

Components of horizontal high speed v groove slotting machine

- Machine tool cable: Germany Igus

- CNC system with large touch screen: Taiwan Superior

- Cylinder seal element: Japan Valqua

- Single/double air switch : France Schneider

- Planetary reducer: Taiwan Liming

- Alloy knife: Korea Korloy

- Thermal relay: France Schneider

- Servo motor: Taiwan Superior

- Button: France Schneider

- Circuit breaker: France Schneider

- Proximity switch: Japan Omron

- Micro relay: France Schneider

- AC Contactor: France Schneider

- Planetary reducer: Taiwan Liming

Applications Industry:

- Hardware products

- Advertising signage

- Bathroom

- Elevator equipment

- Door industry

- Kitchenware

- Stainless steel processing

- Architectural decoration

FAQ

Q: Can you send your staff to install the horizontal high speed v groove slotting machine for us?

A: Yes. We can arrange our engineers to offer on-site service, if you need it.

Q: Can you can design the horizontal high speed v groove slotting machine according to our size?

A: Yes. We can design equipment according to your requirements.

Q: Do you have detailed and professional installation manual?

A: Yes. We have professional instruction manual and video tutorial.
