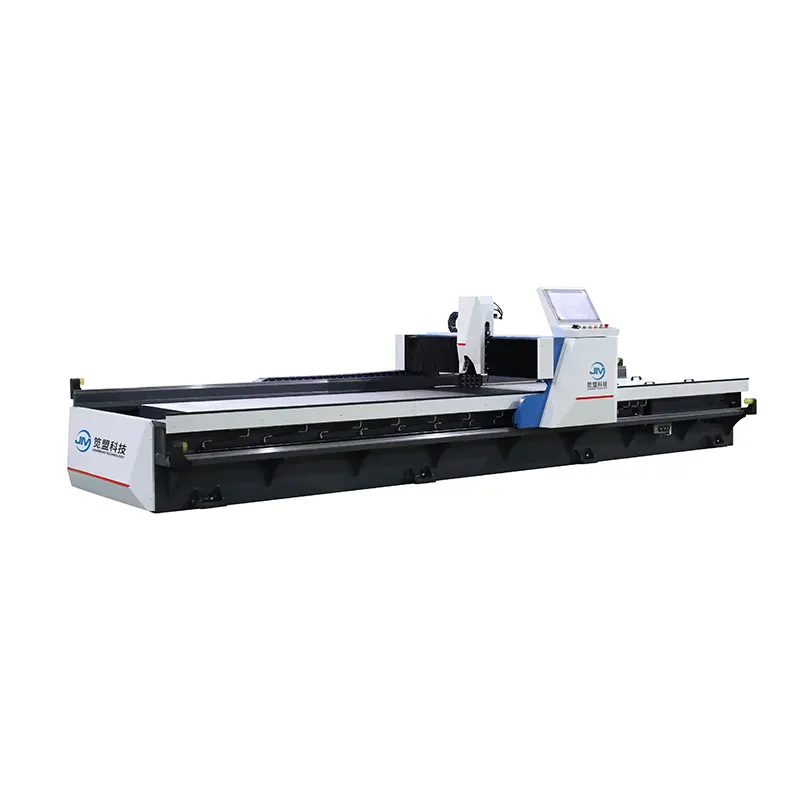

Horizontal High Speed V Grooving Machine For Metal Plates

The horizontal high speed V grooving machine for metal plates is a professional V grooving equipment from JM, a Chinese manufacturer with the various V grooving machines. The horizontal high speed v grooving machine for metal platess are suitable for all metal plates.

Send Inquiry

Product Description

The Chinese V grooving machine manufacturer JM produce the horizontal high speed V grooving machine for metal plates with high cost-effectiveness and economic benefits .

Product Features:

1. The horizontal high speed V grooving machine for metal plates equips open plane, which is easy to use suction cup for loading and unloading.

2. The gantry grooves metal on the double guide rail, which runs smoothly with table working state.

3. The working table of horizontal high speed V grooving machine for metal plates is made of low alloy, and the accuracy of the table is within 0.03mm.

4. Four axis control system, with industrial touch screen, monitors real-time the horizontal high speed V grooving machine for metal plates status.

5. The universal tool holder of horizontal high speed V grooving machine for metal plates can meet the clamping requirements of various cutting tools.

Technical data of Horizontal High Speed V Grooving Machine For Metal Plates

Processability	Processing Length	2500mm	3200 mm	4000 mm	6000mm
	Processing Width	1250/1500mm	1250/1500mm	1250/1500mm	1250/150mm
	Processing Thickness	0.4-5.0mm	0.4-5.0mm	0.4-50mm	0.4-50mm
	Minimum edge distance	8mm	8mm	8mm	8mm
Processing speed	Gantry(X-axis)	0-120 m/min	0-120m/min	0-120 m/min	0-120m/min
	Tool holder(YI-axis)movement	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Movable clamping (Y2 axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Tool holder (Z-axis)up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10m/min
Processing accuracy	Repeated positioning ermror of positioning axis	0.015mm	0.015mm	0.015mm	0.015mm
Processing accuracy	Minimum resolution of positioning axis	0.001mm	0.001mm	0.001mm	0001mm
Table	Table flatness	±0.03mm	±0.03mm	±0.03mm	±0.03 mm
Externa dimensions	Length	4400mm	5100 mm	5900 mm	7900mm
	Processing Width	2000/2250mm	2000/2250mm	2000/2250mm	2000/2250mm
	Height	1550mm	1550 mm	1550 mm	1550mm

Components of Horizontal High Speed V Grooving Machine For Metal Plates

- CNC system with large touch screen: Taiwan Superior

- Servo motor: Taiwan Superior

- Hydraulic control system: Janpan Yuken

- Cylinder seal element: Japan Valqua

- Proximity switch: Japan Omron

- Planetary reducer: Taiwan Liming

- Single/double air switch : France Schneider

- AC Contactor: France Schneider

- Button: France Schneider

- Thermal relay: France Schneider

- Micro relay: France Schneider

- Circuit breaker: France Schneider

- Alloy knife: Korea Korloy

- Machine tool cable: Germany Igus

- Heavy linear guide rail: Taiwan TBI

Applications Industry:

- Architectural decoration

- Door industry

- Elevator equipment

- Kitchenware

- Advertising signage

- Stainless steel processing

- Bathroom

- Hardware products

FAQ

Q: Can you send your staff to install the horizontal high speed V grooving machine of metal plates for us?

A: Yes. We can arrange our engineers to offer on-site service, if you need it.

Q: Do you have detailed and professional installation manual?

A: Yes. We have professional instruction manual and video tutorial.

Q: Can you can design the horizontal high speed V grooving machine for metal plates according to our size?

A: Yes. We can design equipment according to your requirements.
