V-Shaped Grooving Machine

The horizontal high speed v-shaped grooving machine is a professional V grooving equipment produced by JM, a manufacturer in China with the most types of V grooving machines. The horizontal high speed v-shaped grooving machines have high economic benefits and cost-effectiveness at medium to low utilization rates.

Send Inquiry

Product Description

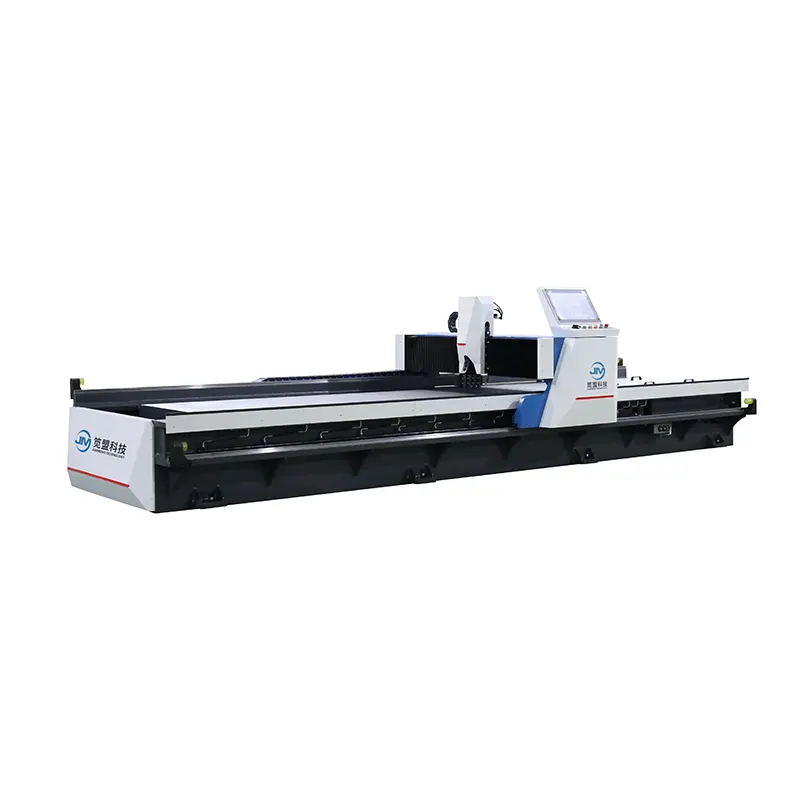

The horizontal high speed v-shaped grooving machine is a professional v grooving equipment produced by the manufacturer JM in China. The gantry-type machine design makes loading and unloading efficient.

Product Features:

1. The horizontal high speed v-shaped grooving machine equips open plane, which is easy to use suction cup for loading and unloading.

2. The gantry grooves metal on the double guide rail, which runs smoothly with table working state.

3. Four axis control system, with industrial touch screen, monitors real-time the horizontal high speed v-shaped grooving machine status.

4. The working table of horizontal high speed v-shaped grooving machine is made of low alloy, and the accuracy of the table is within 0.03mm.

5. The universal tool holder of horizontal high speed v-shaped grooving machine can meet the clamping requirements of various cutting tools.

Technical data of Horizontal High Speed V-shaped Grooving Machine

Processability	Processing Length	2500mm	3200 mm	4000 mm	6000mm
	Processing Width	1250/1500mm	1250/1500mm	1250/1500mm	1250/150mm
	Processing Thickness	0.4-5.0mm	0.4-5.0mm	0.4-50mm	0.4-50mm
	Minimum edge distance	8mm	8mm	8mm	8mm
Processing speed	Gantry(X-axis)	0-120 m/min	0-120m/min	0-120 m/min	0-120m/min
	Tool holder(YI-axis)movement	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Movable clamping (Y2 axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Tool holder (Z-axis)up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10m/min
Processing accuracy	Repeated positioning ermror of positioning axis	0.015mm	0.015mm	0.015mm	0.015mm
Processing accuracy	Minimum resolution of positioning axis	0.001mm	0.001mm	0.001mm	0001mm
Table	Table flatness	±0.03mm	±0.03mm	±0.03mm	±0.03 mm
Externa dimensions	Length	4400mm	5100 mm	5900 mm	7900mm
	Processing Width	2000/2250mm	2000/2250mm	2000/2250mm	2000/2250mm
	Height	1550mm	1550 mm	1550 mm	1550mm
