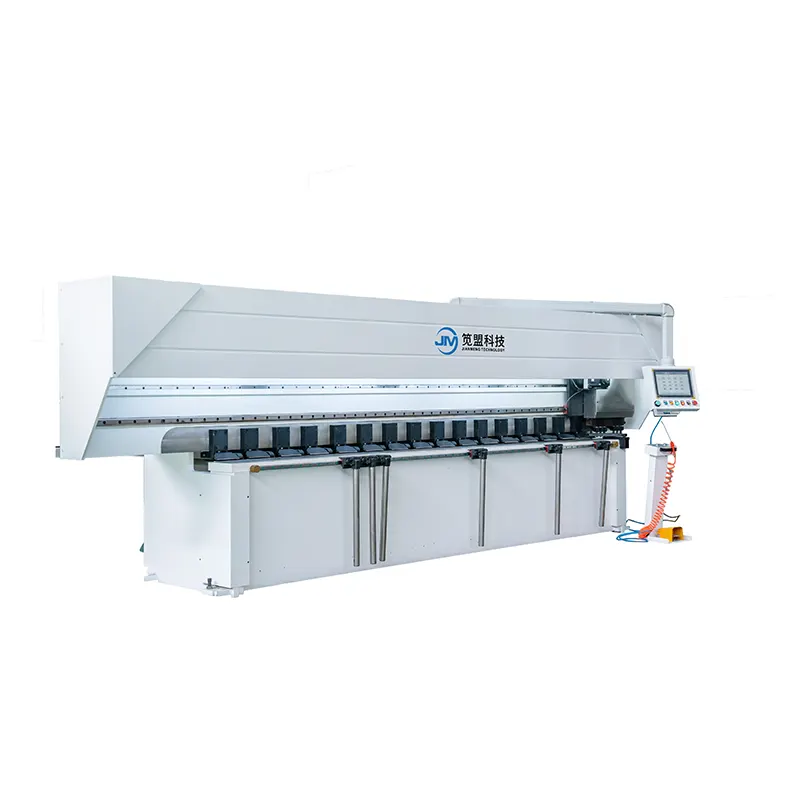

Vertical High Speed V Cutting Machine For Stainless Steel Plates

The manufacturer JM in China is one of professional manufacturer and exporter of Vertical High Speed V Cutting Machine For Stainless Steel Plates. The vertical high speed V cutting machine for stainless steel plates is an upgraded product of traditional grooving machine.

Send Inquiry

Product Description

JM as the Chinese V grooving machine manufacturer offer the vertical high speed V cutting machine for stainless steel plates in best quality, the groove surface from it is as smooth as a mirror.

Product Features:

1. The hardness of the worktable of vertical high speed V cutting machine for stainless steel plates is 55-60HRC after highfrequency surface quenching (ordinary worktable<30HRC), which makes the hardness of the worktable much higher than that of stainless steel.

2. Fixed cross-beam, and sheet metal feed in by back feeding device.

3. The back gauge of vertical high speed V cutting machine for stainless steel plates is driven by double screw rod and double guide rail, with stable operation and accurate positioning.

Technical data of vertical high speed V cutting machine for stainless steel plates

Processability	Processing Length	2500mm	3200 mm	4000 mm	6000mm
	Processing Width	1250/1500mm	1250/1500mm	1250/1500mm	1250/150mm
	Processing Thickness	0.4-5.0mm	0.4-5.0mm	0.4-50mm	0.4-50mm
	Minimum edge distance	8mm	8mm	8mm	8mm
Processing speed	Gantry(X-axis)	0-120 m/min	0-120m/min	0-120 m/min	0-120m/min
	Tool holder(YI-axis)movement	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Movable clamping (Y2 axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Tool holder (Z-axis)up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10m/min
Processing accuracy	Repeated positioning ermror of positioning axis	0.015mm	0.015mm	0.015mm	0.015mm
Processing accuracy	Minimum resolution of positioning axis	0.001mm	0.001mm	0.001mm	0001mm
Table	Table flatness	±0.03mm	±0.03mm	±0.03mm	±0.03 mm
Externa dimensions	Length	4400mm	5100 mm	5900 mm	7900mm
	Processing Width	2000/2250mm	2000/2250mm	2000/2250mm	2000/2250mm
	Height	1550mm	1550 mm	1550 mm	1550mm

Components of vertical high speed V cutting machine for stainless steel plates

- Heavy linear guide rail: Taiwan TBI

- CNC system with large touch screen: Taiwan Superior

- Planetary reducer: Taiwan Liming

- Circuit breaker: France Schneider

- Heavy linear guide rail: Taiwan TBI

- Cylinder seal element: Japan Valqua

- Proximity switch: Japan Omron

- Single/double air switch : France Schneider

- Servo motor: Taiwan Superior

- Button: France Schneider

- Thermal relay: France Schneider

- AC Contactor: France Schneider

- Micro relay: France Schneider

- Alloy knife: Korea Korloy

- Machine tool cable: Germany Igus

Applications Industry:

In many industries our vertical high speed V cutting machine for stainless steel plates can obtain a very high quality groove surface , such as:

- Bathroom

- Stainless steel processing

- Door industry

- Advertising signage

FAQ

Q: Are you a factory or a trading company?

A: We are a manufacturer. We have over 10 years of production experience.

Q: What is your MOQ?

A: 1set

Q: How about after-sales service?

A: From project planning and starting, to production tracking and operation training, to equipment maintenance, spare parts selection and maintenance, we can provide considerate services.
