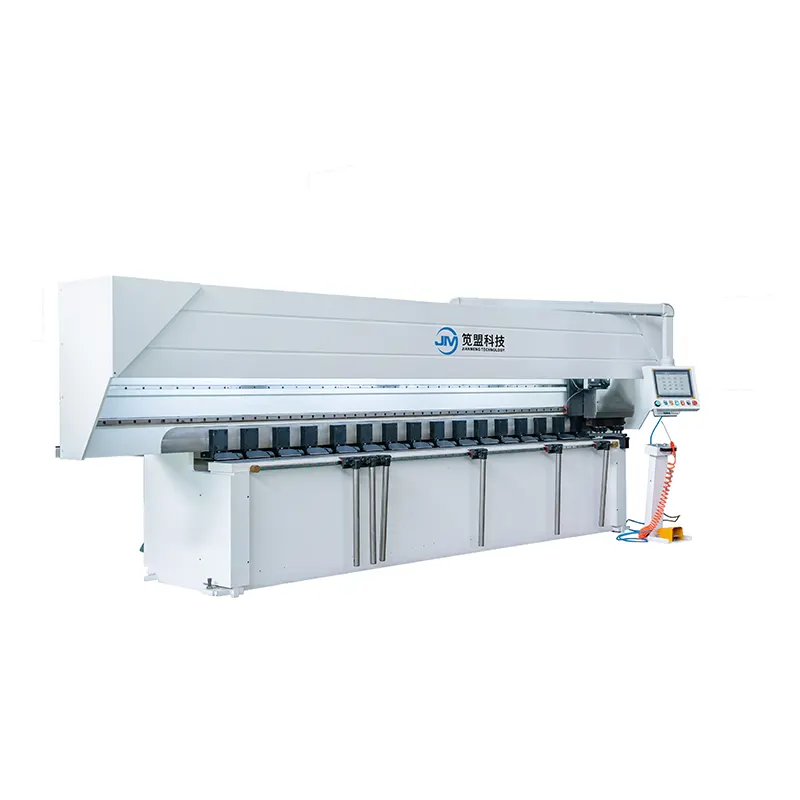

Vertical High Speed V Grooving Machine For Metal Plates

The Chinese Vertical High Speed V Grooving Machine For Metal Plates manufacturer JM is a comprehensive enterprise that integrates the research and development, production, sales and after-sales of CNC v grooving equipment. The vertical high speed V grooving machine for metal plates from it has a long service life.

Send Inquiry

Product Description

The vertical high speed V grooving machine for metal plates from Chinese manufacturer JM can process all metal plates, such as stainless steel plates, aluminium plates, copper plates and so on.

Product Features:

1. The hardness of the worktable is 55-60HRC after highfrequency surface quenching (ordinary worktable<30HRC), which makes the hardness of the worktable much higher than that of stainless steel.

2. The fixed presser feet and the rear gauge presser feet are arranged alternately, evenly and densely.

3. The back gauge of vertical high speed V grooving machine for metal plates is driven by double screw rod and double guide rail, with stable operation and accurate positioning.

Technical data of vertical high speed V grooving machine for metal plates

Processability	Processing Length	2500mm	3200 mm	4000 mm	6000mm
	Processing Width	1250/1500mm	1250/1500mm	1250/1500mm	1250/150mm
	Processing Thickness	0.4-5.0mm	0.4-5.0mm	0.4-50mm	0.4-50mm
	Minimum edge distance	8mm	8mm	8mm	8mm
Processing speed	Gantry(X-axis)	0-120 m/min	0-120m/min	0-120 m/min	0-120m/min
	Tool holder(YI-axis)movement	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Movable clamping (Y2 axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Tool holder (Z-axis)up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10m/min
Processing accuracy	Repeated positioning ermror of positioning axis	0.015mm	0.015mm	0.015mm	0.015mm
Processing accuracy	Minimum resolution of positioning axis	0.001mm	0.001mm	0.001mm	0001mm
Table	Table flatness	±0.03mm	±0.03mm	±0.03mm	±0.03 mm
Externa dimensions	Length	4400mm	5100 mm	5900 mm	7900mm
	Processing Width	2000/2250mm	2000/2250mm	2000/2250mm	2000/2250mm
	Height	1550mm	1550 mm	1550 mm	1550mm

Components of vertical high speed V grooving machine for metal plates

- CNC system with large touch screen: Taiwan Superior

- Hydraulic control system: Janpan Yuken

- Servo motor: Taiwan Superior

- Planetary reducer: Taiwan Liming

- Circuit breaker: France Schneider

- Heavy linear guide rail: Taiwan TBI

- Cylinder seal element: Japan Valqua

- Proximity switch: Japan Omron

- Single/double air switch : France Schneider

- AC Contactor: France Schneider

- Button: France Schneider

- Thermal relay: France Schneider

- Micro relay: France Schneider

- Alloy knife: Korea Korloy

- Machine tool cable: Germany Igus

Applications Industry:

Many industries may need our vertical high speed V grooving machine for metal plates, such as:

- Door industry

- Architectural decoration

- Stainless steel processing

- Bathroom

FAQ

Q: Are you a factory or a trading company?

A: We are a manufacturer. We have over 10 years of production experience.

Q: Can you can design the vertical high speed grooving machine according to our size?

A: Yes. We can design the vertical high speed grooving machine according to your requirements.

Q: How many production lines in your factory?

A: We have 6 production lines for producing vertical high speed grooving machines at the same time,which is far ahead in the grooving machine industry.
