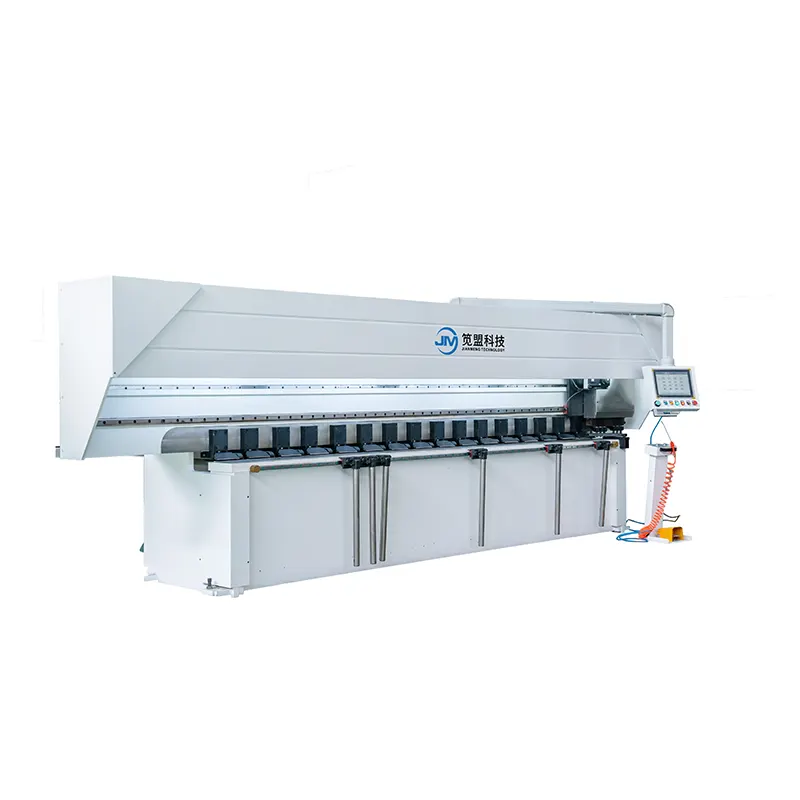

Vertical High Speed V Grooving Machine For Stainless Steel Plates

The Vertical High Speed V Grooving Machine For Stainless Steel Plates manufacturer JM in China determines to bring high-quality Chinese manufacturing grooving machines to the world ! The vertical high speed V grooving machine for stainless steel is an upgraded product of traditional grooving machine.

Send Inquiry

Product Description

The Chinese V grooving machine manufacturer produces the vertical high speed V grooving machine for stainless steel plates is driven by high power full servo. With the careful adjustment of JM engineers, the hourly rate of Jianmeng Technology's

new slot plough can be reduced by up to 20% compared with the three- phase asynchronous motor under the same power.

Product Features:

1. The hardness of the worktable is 55-60HRC after highfrequency surface quenching (ordinary worktable<30HRC), which makes the hardness of the worktable much higher than that of stainless steel.

2. The back gauge of vertical high speed V grooving machine for stainless steel plates is driven by double screw rod and double guide rail, with stable operation and accurate positioning.

1. The vertical high speed V grooving machine for stainless steel plates adopts back feeding structure with fixed cross beam.

Technical data of vertical high speed V grooving machine for stainless steel plates

Processability	Processing Length	2500mm	3200 mm	4000 mm	6000mm
	Processing Width	1250/1500mm	1250/1500mm	1250/1500mm	1250/150mm
	Processing Thickness	0.4-5.0mm	0.4-5.0mm	0.4-50mm	0.4-50mm
	Minimum edge distance	8mm	8mm	8mm	8mm
Processing speed	Gantry(X-axis)	0-120 m/min	0-120m/min	0-120 m/min	0-120m/min
	Tool holder(YI-axis)movement	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Movable clamping (Y2 axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Tool holder (Z-axis)up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10m/min
Processing accuracy	Repeated positioning ermror of positioning axis	0.015mm	0.015mm	0.015mm	0.015mm
Processing accuracy	Minimum resolution of positioning axis	0.001mm	0.001mm	0.001mm	0001mm
Table	Table flatness	±0.03mm	±0.03mm	±0.03mm	±0.03 mm
Externa dimensions	Length	4400mm	5100 mm	5900 mm	7900mm
	Processing Width	2000/2250mm	2000/2250mm	2000/2250mm	2000/2250mm
	Height	1550mm	1550 mm	1550 mm	1550mm

Components of vertical high speed V grooving machine for stainless steel plates

- CNC system with large touch screen: Taiwan Superior

- Hydraulic control system: Janpan Yuken

- Planetary reducer: Taiwan Liming

- Circuit breaker: France Schneider

- Cylinder seal element: Japan Valqua

- Proximity switch: Japan Omron

- Single/double air switch : France Schneider

- Servo motor: Taiwan Superior

- AC Contactor: France Schneider

- Button: France Schneider

- Thermal relay: France Schneider

- Micro relay: France Schneider

- Alloy knife: Korea Korloy

- Heavy linear guide rail: Taiwan TBI

- Machine tool cable: Germany Igus

Applications Industry:

Our vertical high speed V grooving machine for stainless steel plates make use in many industries, such as:

- Door industry

- Architectural decoration

- Stainless steel processing

- Door industry

- Advertising signage

FAQ

Q: Are you a factory or a trading company?

A: We are a manufacturer. We have over 10 years of production experience.

Q: How many production lines in your factory?

A: We have 6 production lines for producing vertical high speed grooving machines at the same time,which is far ahead in the grooving machine industry.

Q: How about after-sales service?

A: From project planning and starting, to production tracking and operation training, to equipment maintenance, spare parts selection and maintenance, we can provide considerate services.
