CNC Horizontal Double Drive V Slotting Machine

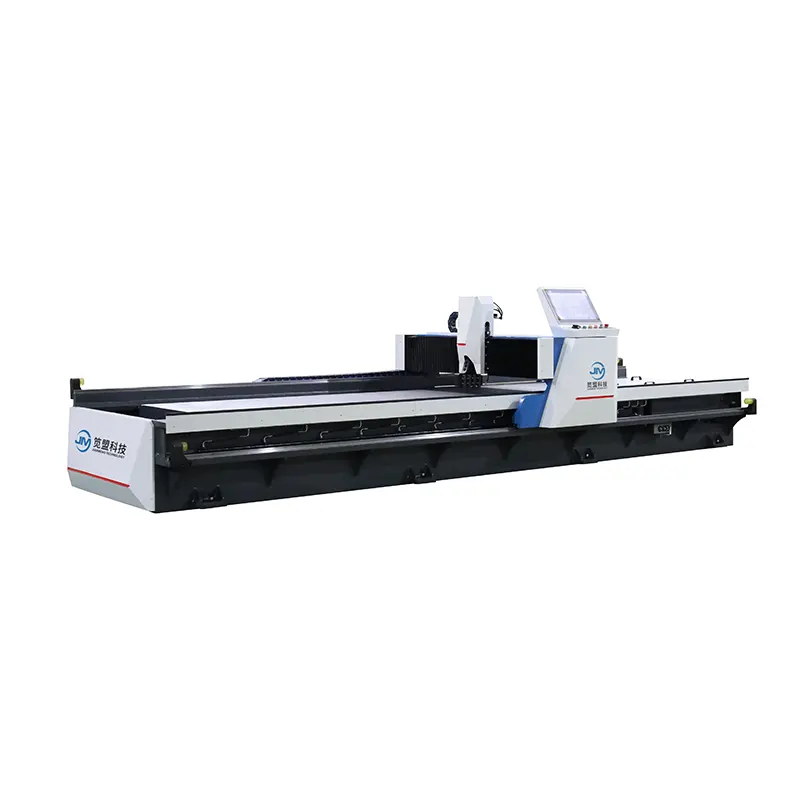

The CNC horizontal double drive V slotting machine is a intelligent V grooving equipment from the professional V grooving machine manufacturer JM in China. This machine have high cost-effectiveness at medium to low utilization rates.

Send Inquiry

Product Description

The Chinese V grooving machine manufacturer JM provides global customers with the advanced CNC Horizontal Double Drive V Slotting Machine, which is suitable for processing of dissimilar work.

Product Features:

1. The CNC horizontal double drive V slotting machine supports fixed-point grooving, processing of dissimilar work.

2. Five axis control system, with industrial touch screen, monitors real-time CNC horizontal double drive V slotting machine status.

3. Intelligent system, easy to master and operate.

4. The CNC system incorporates various advanced functions to enhance processing efficiency and deliver top-quality grooving results.

5. The crossbeam of CNC horizontal double drive V slotting machine is driven by double servo motors, equipped with double high-power planetary reducer, running smoothly.

6. Double rack and pinion drive with servo driver, accurate positioning.

Technical data of CNC Horizontal Double Drive V Slotting Machine

Processability	Processing Length	2500mm	3200 mm	4000 mm	6000mm
	Processing Width	1250/1500mm	1250/1500mm	1250/1500mm	1250/150mm
	Processing Thickness	0.4-5.0mm	0.4-5.0mm	0.4-50mm	0.4-50mm
	Minimum edge distance	8mm	8mm	8mm	8mm
Processing speed	Gantry(X-axis)	0-120 m/min	0-120m/min	0-120 m/min	0-120m/min
	Tool holder(YI-axis)movement	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Movable clamping (Y2 axis)	0-60 m/min	0-60 m/min	0-60 m/min	0-60 m/min
	Tool holder (Z-axis)up and down	0-10 m/min	0-10 m/min	0-10 m/min	0-10m/min
Processing accuracy	Repeated positioning ermror of positioning axis	0.015mm	0.015mm	0.015mm	0.015mm
Processing accuracy	Minimum resolution of positioning axis	0.001mm	0.001mm	0.001mm	0001mm
Table	Table flatness	±0.03mm	±0.03mm	±0.03mm	±0.03 mm
Externa dimensions	Length	4400mm	5100 mm	5900 mm	7900mm
	Processing Width	2000/2250mm	2000/2250mm	2000/2250mm	2000/2250mm
	Height	1550mm	1550 mm	1550 mm	1550mm

Components of CNC Horizontal Double Drive V Slotting Machine

- Servo motor: Taiwan Superior

- CNC system with large touch screen: Taiwan Superior

- Proximity switch: Japan Omron

- Planetary reducer: Taiwan Liming

- Cylinder seal element: Japan Valqua

- Circuit breaker: France Schneider

- Single/double air switch : France Schneider

- AC Contactor: France Schneider

- Button: France Schneider

- Bearing: Japan SFK

- Thermal relay: France Schneider

- Micro relay: France Schneider

- Alloy knife: Korea Korloy

- Heavy linear guide rail: Taiwan TBI

- Machine tool cable: Germany Igus

Applications Industry:

Our CNC horizontal double drive V slotting machine helps many industries to process metal plates, such as

- Stainless steel processing

- Hardware products

- Kitchenware

- Advertising signage

FAQ

Q: Do you have any real project pictures of the CNC horizontal double drive V grooving machine?

A: Yes. We can provide real project pictures and videos for equipment at any time, including using videos and pictures in customer site.

Q: Can you provide after-sales service?

A: We will offer customer excellent after-sales service.
